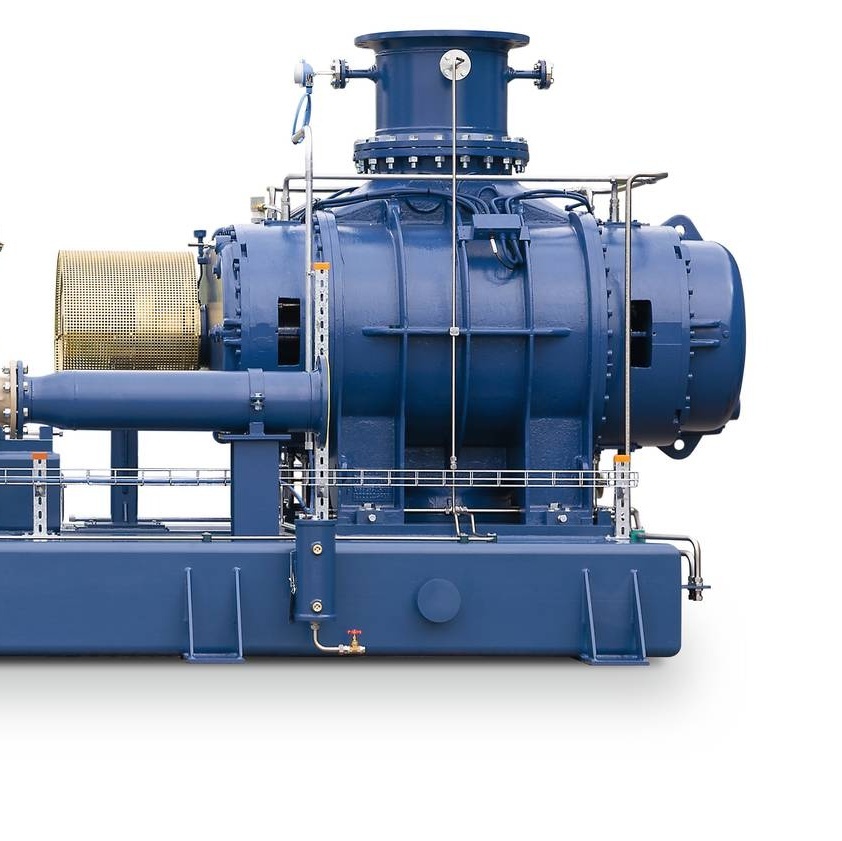

Positive Displacement Blowers
Process Gas Blower
Series GR
AERZEN offers the process gas and coolant industries an incredibly broad spectrum of blower technologies – perhaps the broadest of any manufacturer. Machines that operate as stand-alones, in machine or container combinations, onshore and offshore.
Volume flow:
90
to
36.000
m3/h
Differential pressure (Δp):
150
to
1.500
mbar
Medium:
Process Gases
Conveying:
Oil-free
The advantages of AERZEN Blower series GR at a glance:
- 100% oil-free compression in all operating conditions
- Customized designs: Materials and sealing systems
- Water injection possible for continuous cooling and washing effect
- Robust two-lobe rotor design (gas-tight sealed) for maximum durability
- 14 rotor sizes allow for high efficiency and adaptation to the individual design case
Process gas blowers from AERZEN function reliably in all industries, in all markets, and in all countries on earth.
AERZEN offers the process gas and coolant industries an incredibly broad spectrum of blower technologies – perhaps the broadest of any manufacturer. Machines that operate as stand-alones, in machine or container combinations, onshore and offshore. In every single key industrial application:
Chemical and petrochemical industries
- Compression of H2 and CH mixtures
- Acetylene
- Ethylenes
- Lime kiln gas
- Rich gas
- Synthesis raw gas
- Butadiene
- Vinyl chloride
- Hydrogen sulphide
- Hydrogen
Refineries
- Hydrocracking
- Hydrosulphurisation
- Fractionating
- Reforming
- Catalytic cracking
- PSA
- Flare gas
- Compression of H2 and CH mixtures Energy production
- Gas turbine supply
- Steam
Oil & gas conveyance and storage
- VOC recovery
- Natural gas compression
- Pipeline booster
- Underground gas storage
Industrial gases
- Hydrogen generation
- Air separation
- Argon
- Syngas Coolant industry
- Coolants (R1270, R290, etc.)
Helium refrigerator and liquefier
- Helium
Offshore
- Natural gas compression
Breweries
- Waste steam
Pharmaceuticals & coking plants
US Units
No- Type of technology
- Positive Displacement Blowers
- Differential pressure (Δp)
- 150 to 1.500 mbar
- Volume flow
- 90 to 36.000 m3/h
- Medium
- Process Gases
- Conveying
- Oil-free
High-Performance blowers for special requirements
The single- or two-stage process blowers GR can be used for almost all technical gases and gas mixtures
Maximum differential pressure: 1.5 bar
Maximum outlet pressure: 6 bar g
100% oil-free compression, as the conveying chamber is completely separated from the oil chambers
Design
- Conveying direction: vertically downward
- Custom seals: mechanical seals oil-purged, water-purged, or gas-purged, carbon ring labyrinth seals
- Special materials for housings and rotors according to gas properties
- Water injection possible for continuous cooling and washing effect
Drive
Electric motor - directly via an elastic coupling or via an elastically coupled spur gear. Also driven by a narrow V-belt (up to 250 kW drive power)
